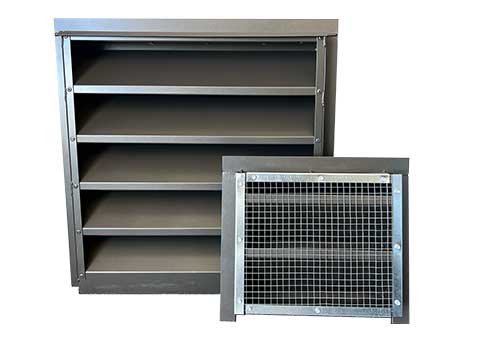

Stationary Straight Blade Louvers
Our straight blade louver design provides air intake in exterior walls at a reduced cost. This economical model is perfect for exterior aesthetics or for buildings where water entry is less critical.
Features
- May be fitted with metal building flanges which self-flash to metal wall panels
- Other options include channel frame or front flange frame
- Visible mullions, option for continuous blade appearance
- Blades depths of 2, 4 or 6 inches
- Louvers are formed Aluminum or Galvanized and can be finished to match building exterior
- Description
- Model Guide
- Sizes and Weights
- Documents
Standard Design Specifications
| Louver Shapes | Square, Round, Gable |
| Frame | 0.063″/0.080″ 5052 H32 aluminum 18 GA galvanized steel |
| Blades | 0.063″/0.080″ 5052 H32 aluminum 18 GA galvanized steel |
| Fasteners | Visible pop-rivets mount blades to frame |
| Screen | 1/2″ mesh 0.063″ aluminum or 1/2″ mesh 19 GA galvanized steel |
| Finish | Aluminum Mill, Steel Galvanized, Powder Coat or Kynar |
| Warranty | 1 year |
Louver Options
| Frame Options | |
| Metal Building Flanges | MB: Include head drip lip and offset perimeter flange to flash into a metal wall panel. Specify wall panel make and model for proper sizing |
| Channel Frame | C: Standard for use in framed or masonry openings |
| Front Flange Frame | F: Flange Frame option includes a full perimeter flange flush with the louver face |
| Louver Finish | |
| Standard | Aluminum mill or galvanized steel |
| Powder Coat | Baked polyester standard colors (most economical) and custom color matching |
| Kynar | Multiple thicknesses available depending on specification |
| Other Options | |
| Fully Welded Construction | High wind loads may call for reinforced construction. Louvers may be fabricated by welding all major seams to provide an ultra-rigid design |
| Insect Screen | Louvers shipped standard with bird screen but may be fitted with mesh insect screen |
| Filter Racks | Integrated filter rack system with disposable or washable filters |
| Blank-Off Panels | Aluminum construction, insulated or non-insulated. Pan-in-pan design. |
Louver Model Guide
| Model | Blade Type | Construction | Frame Depth | Blade Design | Blade Degree | Special Features |
| LVR |
|
|
|
|
|
|
Example
LVR-FG-4004-MB is a formed galvanized steel 4″ deep stationary straight blade louver with metal building flanges
| Model | FA-2004 | FG-2004 | FA-4004 | FG-4004 | FA-6004 | FG-6004 |
| Minimum Size per Panel | 12″x12″ | 12″x12″ | 12″x12″ | 12″x12″ | 12″x12″ | 12″x12″ |
| Maximum Size per Panel | 96″x96″ | 96″x96″ | 96″x96″ | 96″x96″ | 96″x96″ | 96″x96″ |
| Ship Weight per Square Foot | 2 lbs/sf | 4 lbs/sf | 4 lbs/sf | 6 lbs/sf | 6 lbs/sf | 7 lbs/sf |
Documents
Formed Stationary Straight Blade Louvers
| Product Description | Model | Submittal | Specifications | Installation | Warranty |
| 2″ Deep Aluminum | FA-2004 | ||||
| 2″ Deep Galvanized | FG-2004 | ||||
| 4″ Deep Aluminum | FA-4004 | ||||
| 4″ Deep Galvanized | FG-4004 | ||||
| 6″ Deep Aluminum | FA-6004 | ||||
| 6″ Deep Galvanized | FG-6004 |
